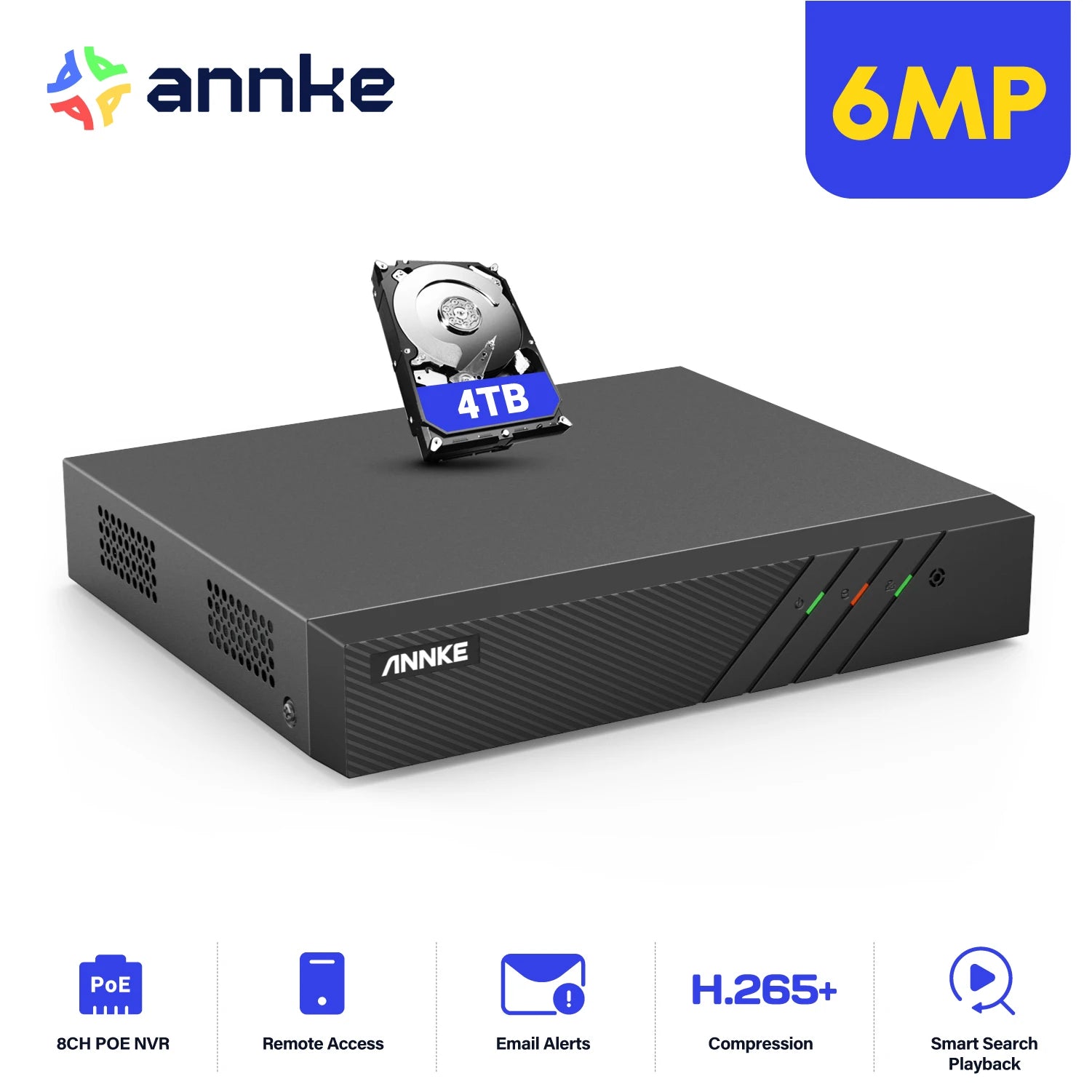

ANNKE H.265+ 6MP 8CH PoE NVR for IP Security Camera System 24/7 Record Remote Access Plug-and-Play ANNKE Vision app
ANNKE H.265+ 6MP 8CH PoE NVR for IP Security Camera System 24/7 Record Remote Access Plug-and-Play ANNKE Vision app
Couldn't load pickup availability
SPECIFICATIONS
Alarm Type: Email Photo
Audio Compression Format: MP3
Audio Input: 8 Channel
Backup Type: Hard Drive
Brand Name: ANNKE
Certification: CE
Compression Format: H.265
Hard drive Interface Type: SATA
Hign-concerned Chemical: None
Model Number: N98PBL
Network Interface: RJ45 10/100M
Origin: Mainland China
POE: 8 Port
Smart home platform: None
Supported Operating Systems: Microsoft Windows 98,Microsoft Windows ME,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7,macOS
Two-way Audio: No
Video Resolution: 6mp
e-Cloud(P2P): No
Main Features:
· 6MP high definition Real-time live viewing, recording&playback
· Up to 8 channel IP camera connectable with built-in PoE inputs
· Advanced H.265+ compression effectively reduces the storage space by up to 75%
· Smart playback to improve the playback efficiency
· Supports iPhone、iPad、Android mobile remote monitoring
· Annke vision for easy remote monitoring
Specifications:
NVR | ||
Video & Audio |
Video Compression |
H.265+/H.265/ H.264+/H.264 |
IP Video Input |
8CH POE |
|

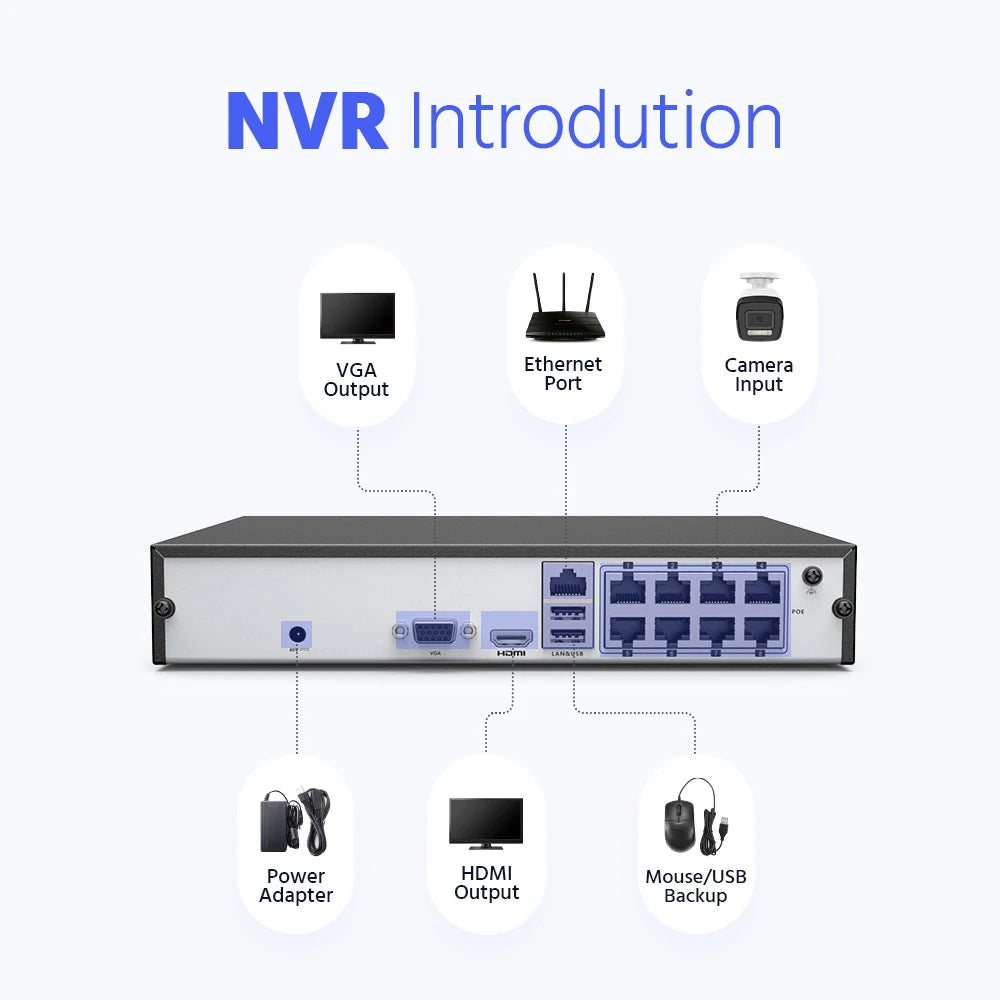

Video Output |
HDMI & VGA Up to 1080P |
|
Incoming bandwidth |
60M |
|
Max Recording Resolution |
Up to 6MP |
|
Max Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
4-ch@1080P, 1-ch@6MP@25fps |
|
Onvif Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 6TB capacity |
|
|
Network interface |
RJ45x1(10/100M) |
POE |
8 Ports(IEEE802.3af/at) |
|
USB |
2x USB 2.0 |
|
General |
Operating Power |
DC48V |
Power Consumption |
≤10W(without HDD and POE) |
|
POE: Max 25.5W for single port | ||
Working Temperature |
14 °F ~ 131 °F /-10 °C ~+55 °C |
|
Dimensions(W x H x D) |
10.4" × 8.9" × 1.9" / 265 × 225 × 48mm |
|
Weight (without hard disk) |
2.2lb / 1KG |
|
What's in the Box:
1X NVR
1X USB Mouse
1X Power Adapter
1X 1 m Network Cable
1X 1.8 m HDMI Cable
1X User Manual

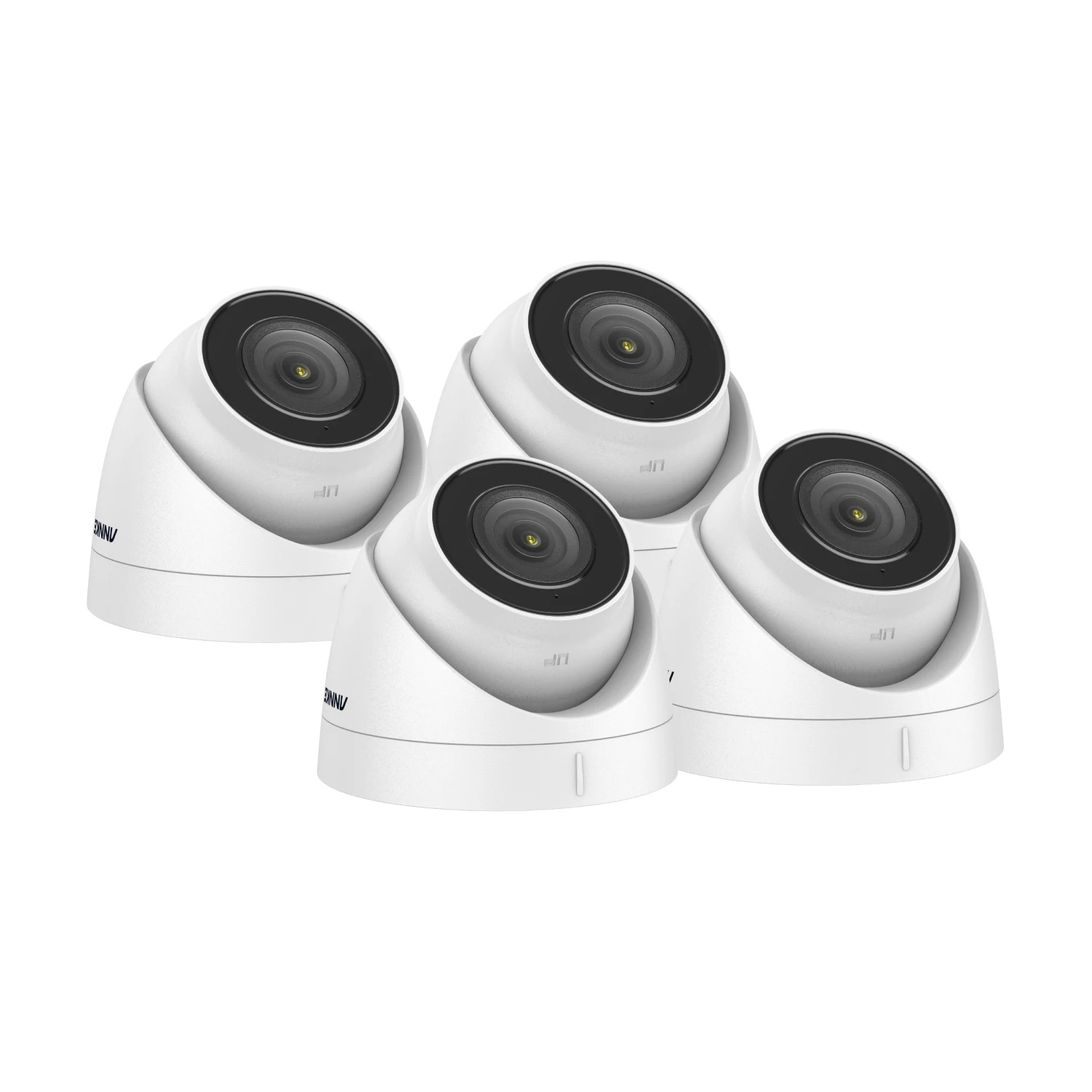

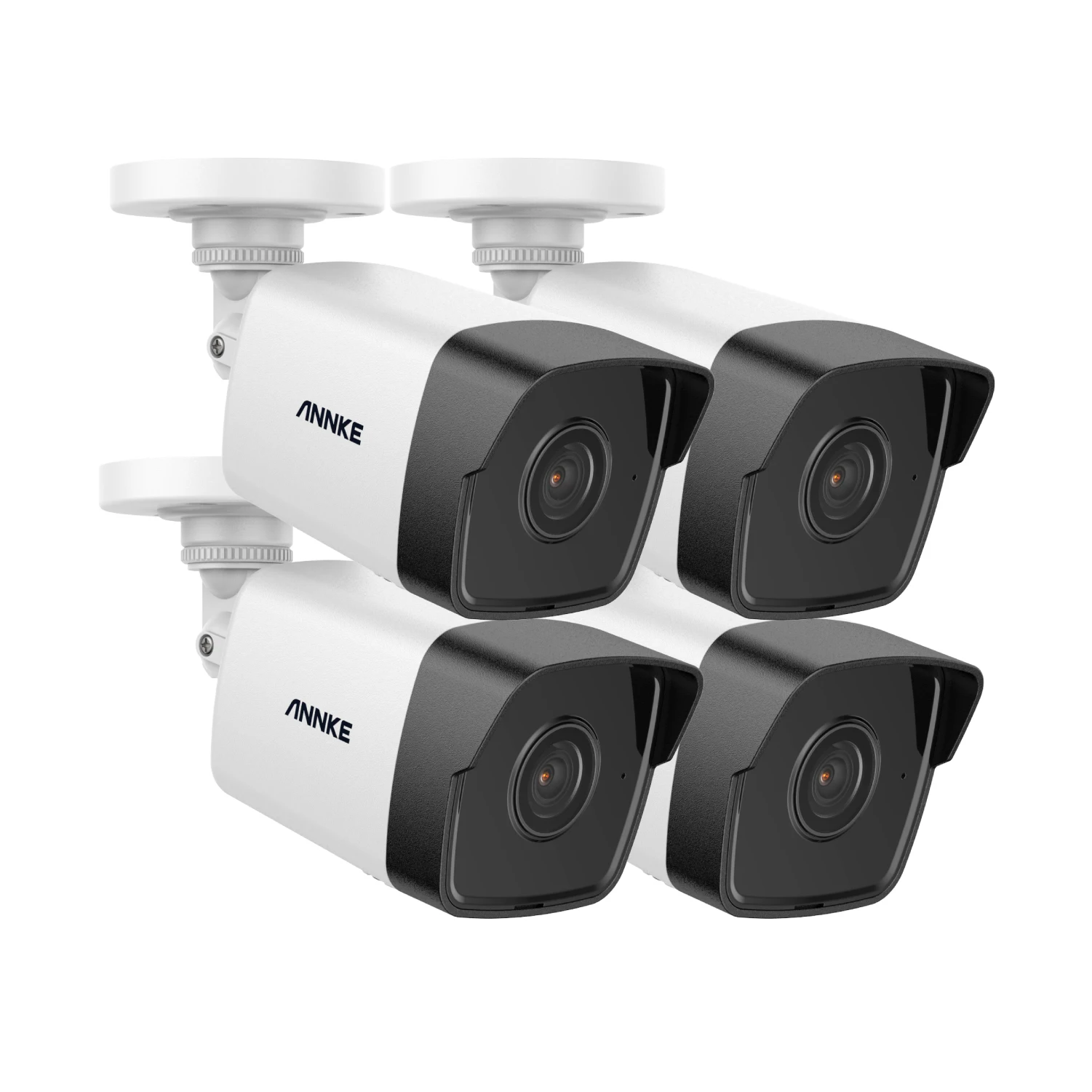

Here the Camera Kits compatible this NVR, just click below picture to purchase together, thx
