ANNKE 6MP H265 8 Channel PoE NVR with Remote Access
ANNKE 6MP H265 8 Channel PoE NVR with Remote Access
Couldn't load pickup availability
Experience crystal-clear 6MP live view and secure remote access with your 8-channel PoE NVR designed for real-time security.
- 8-channel PoE makes setup effortless: you can connect up to eight IP cameras with built-in PoE inputs for plug‑and‑play installation and tidy cabling.
- H.265+/H.265 compression dramatically reduces storage by up to 75% while you retain 6MP detail.
- Monitor remotely from your iPhone, iPad, and Android devices via ANNKE Vision, and rely on smart playback to find events quickly.

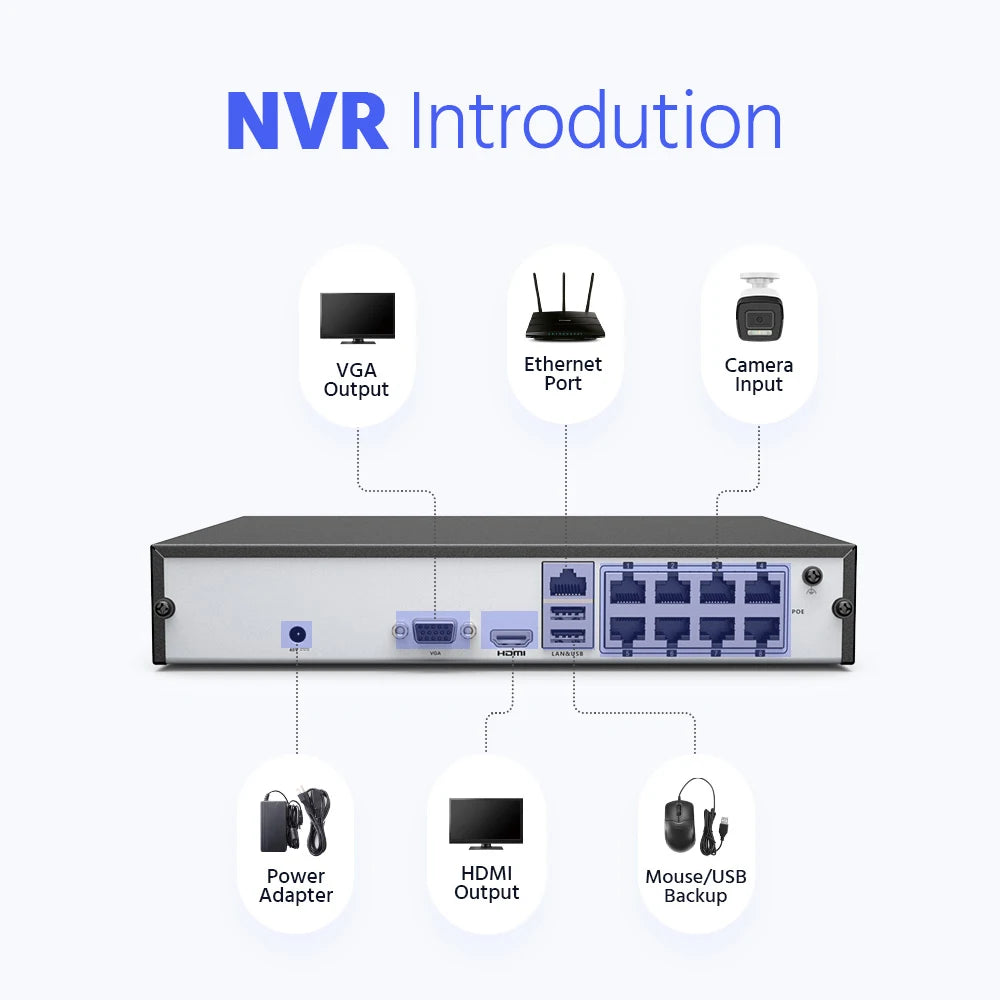

- You get flexible video output and storage: HDMI/VGA up to 1080P, 60 Mbps incoming bandwidth, one SATA HDD up to 6TB, and ONVIF compatibility for easy system expansion.
NVR | ||
Video & Audio |
Video Compression |
H.265+/H.265/ H.264+/H.264 |
IP Video Input |
8CH POE |
|
Video Output |
HDMI & VGA Up to 1080P |
|
Incoming bandwidth |
60M |
|
Max Recording Resolution |
Up to 6MP |
|
Max Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
4-ch@1080P, 1-ch@6MP@25fps |
|
Onvif Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 6TB capacity |
|
|
Network interface |
RJ45x1(10/100M) |
POE |
8 Ports(IEEE802.3af/at) |
|
USB |
2x USB 2.0 |
|
General |
Operating Power |
DC48V |
Power Consumption |
≤10W(without HDD and POE) |
|
POE: Max 25.5W for single port | ||
Working Temperature |
14 °F ~ 131 °F /-10 °C ~+55 °C |
|
Dimensions(W x H x D) |
10.4" × 8.9" × 1.9" / 265 × 225 × 48mm |
|
Weight (without hard disk) |
2.2lb / 1KG |
|
