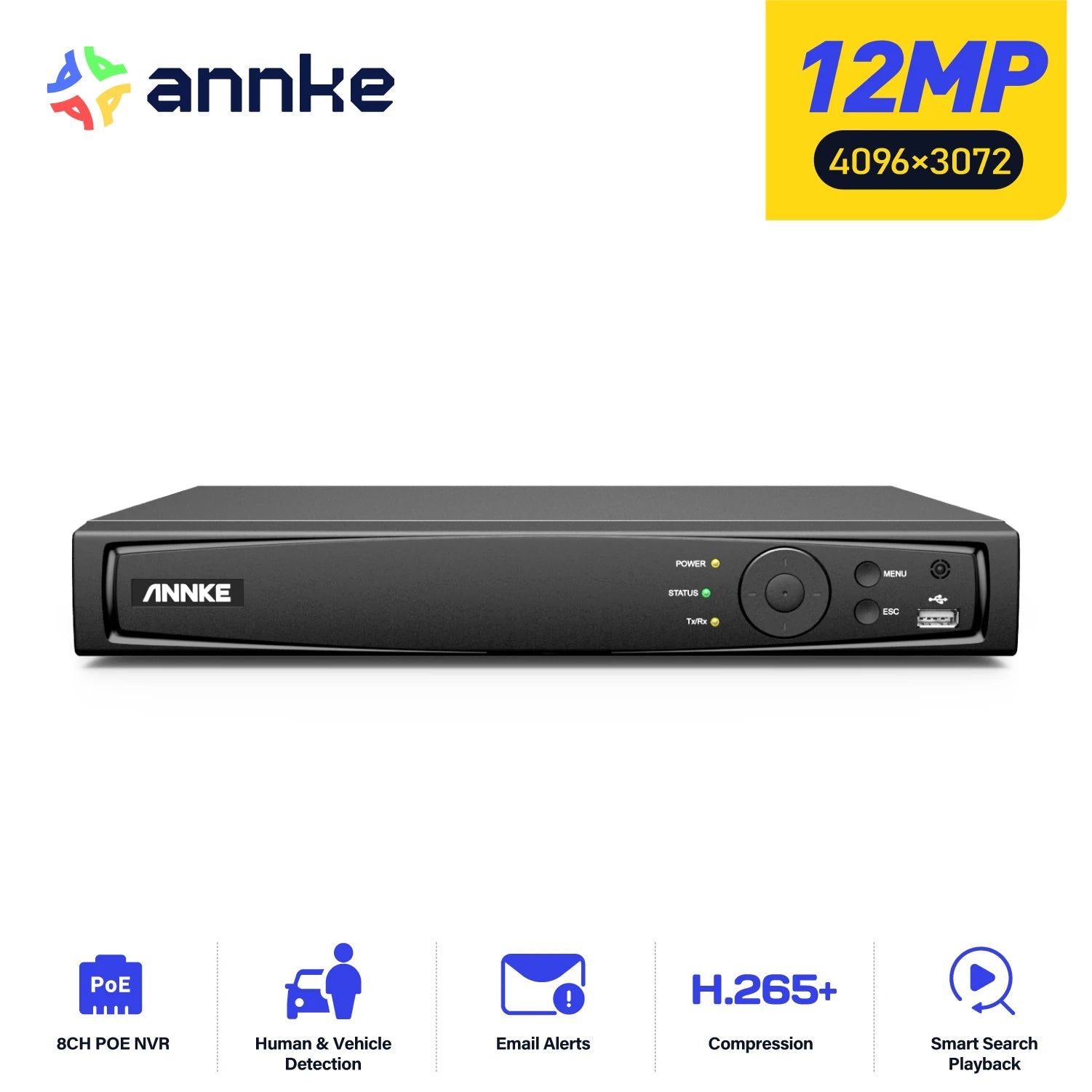

ANNKE 8/16 Channel 12MP PoE NVR Video Surveillance Recorder
ANNKE 8/16 Channel 12MP PoE NVR Video Surveillance Recorder
Couldn't load pickup availability
Supercharge your surveillance with an 8-channel PoE NVR that delivers 12MP live view, flexible storage, and smart, actionable alerts.
- 8-channel PoE inputs simplify wiring for you while enabling 12MP live view and recording, with HDMI output up to 4K (4096×2160) for crystal-clear playback.
- Efficient compression reduces your bandwidth and HDD usage via H.265+/H.265/H.264/H.264+, with a 1-SATA port supporting up to 8 TB of storage.
- Remote monitoring on your iPhone, iPad, and Android through Annke Vision, plus compatibility with third-party cameras for flexible expansion.
- Smart AI alerts tailored for your setup provide 8-channel human/vehicle detection (IP camera dependent) and smart events like line crossing and region intrusion.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|

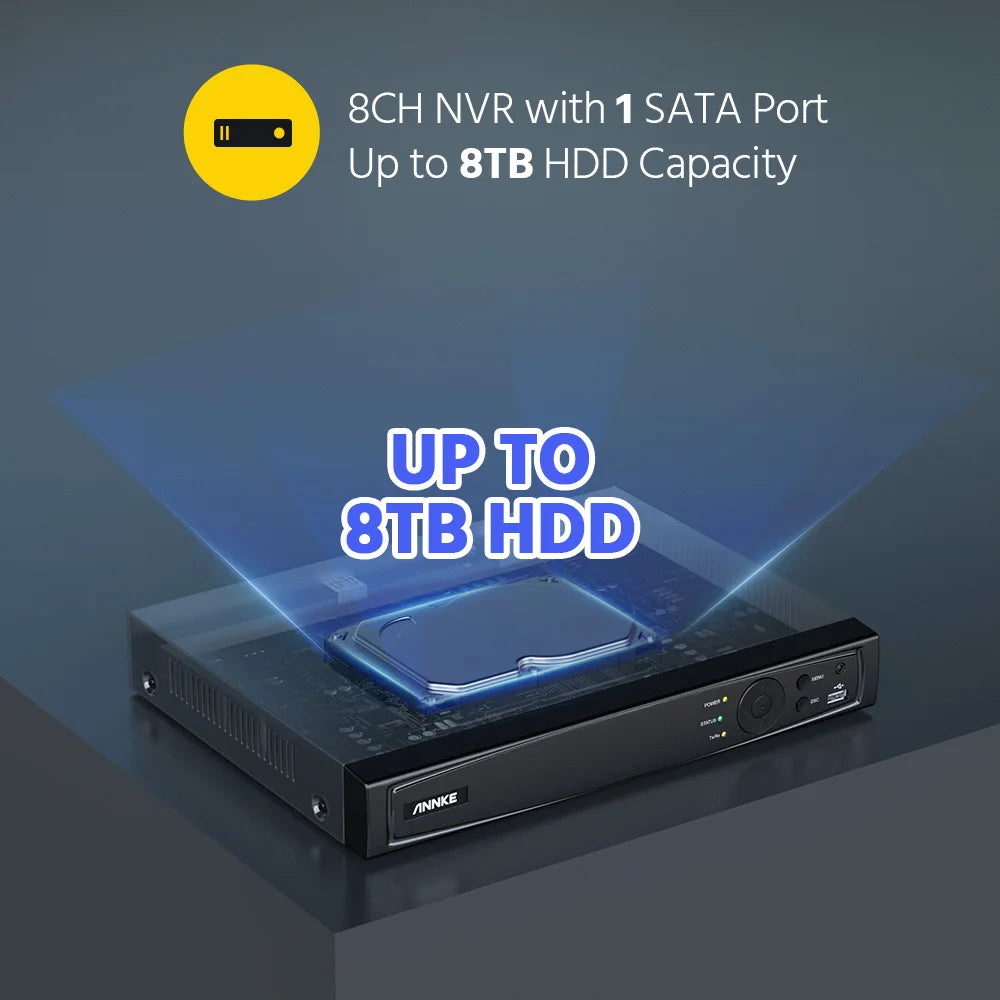

Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
