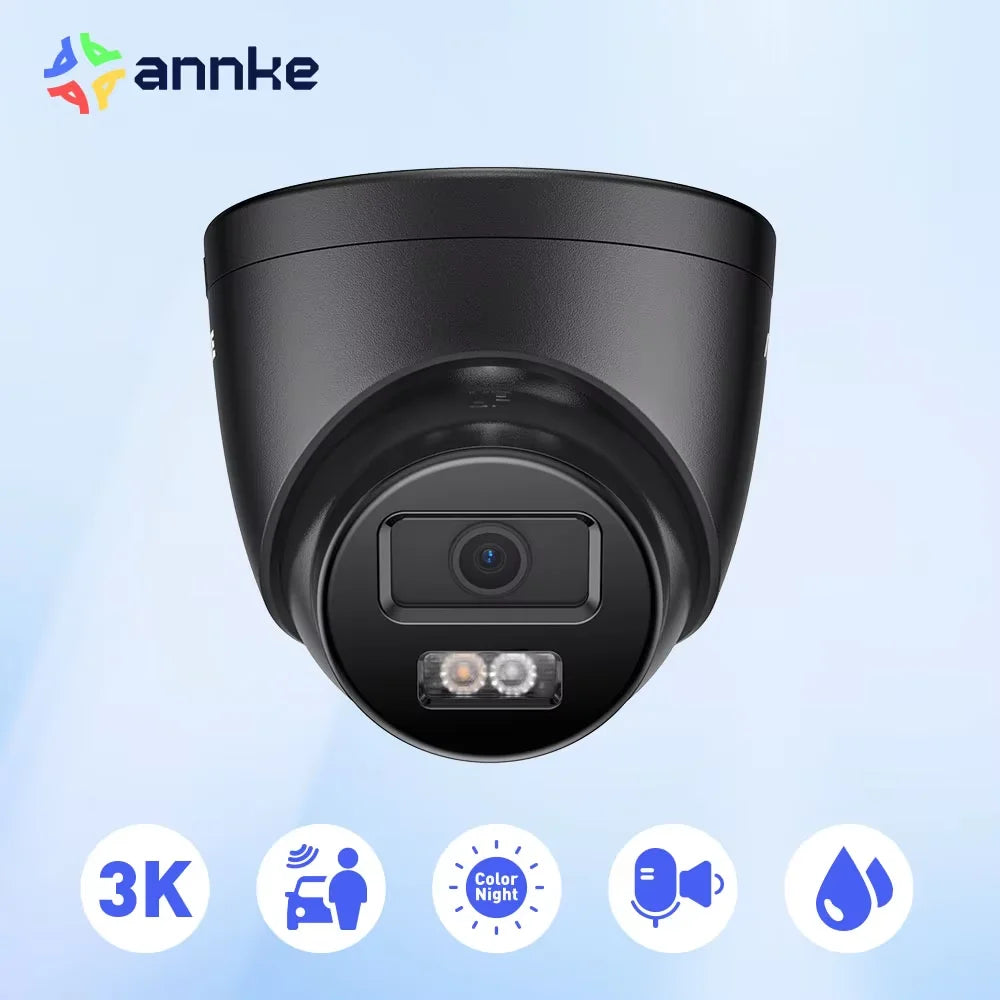

ANNKE 5MP IR Network Camera With Built In Microphone PoE
ANNKE 5MP IR Network Camera With Built In Microphone PoE
Couldn't load pickup availability
Capture sharp 5MP surveillance with built-in audio and PoE for reliable, hands-free security day and night.
- 3K 5MP (3072×1728) video in a 16:9 frame, with a 2.8 mm lens and 98° horizontal field of view, paired with H.265+ for efficient bandwidth.

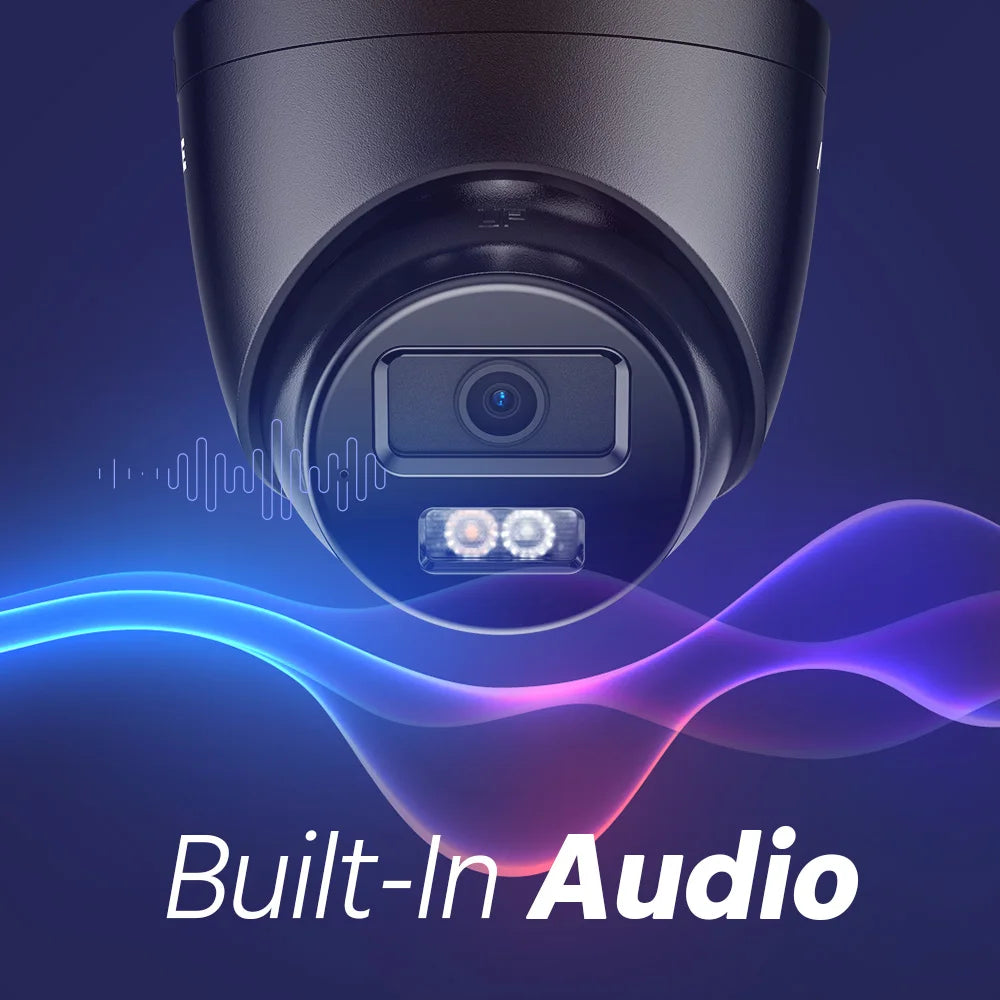

- Smart Motion Detection 2.0 flags humans and vehicles to reduce false alarms, while the built-in microphone captures real-time audio to verify events.
- Smart Dual-Light blends IR up to 30 m with white light up to 20 m, delivering color footage after dark, plus 3D DNR and 120 dB WDR for clarity.
- IP67 weatherproof housing supports indoor/outdoor use; you can power it via PoE or DC12V, store up to 256 GB on-board, and access it remotely from Android, iOS, or Windows.
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
color |
Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
Approx. 340 g (0.7 lb.) |
|
