Empower your network edge with the rugged ANDDEAR ANDDDARPOE6 Industrial PoE Switch Module.

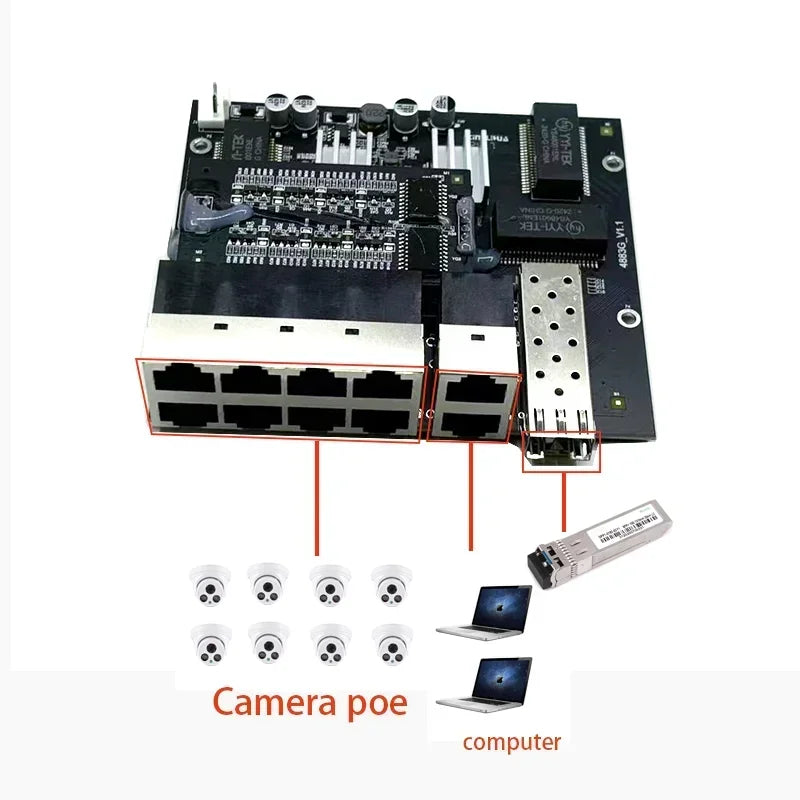

- You can power wireless APs, IP cameras, and VoIP devices with eight 48V PoE ports (IEEE 802.3af/at) offering up to 30W per port and up to 140W total.

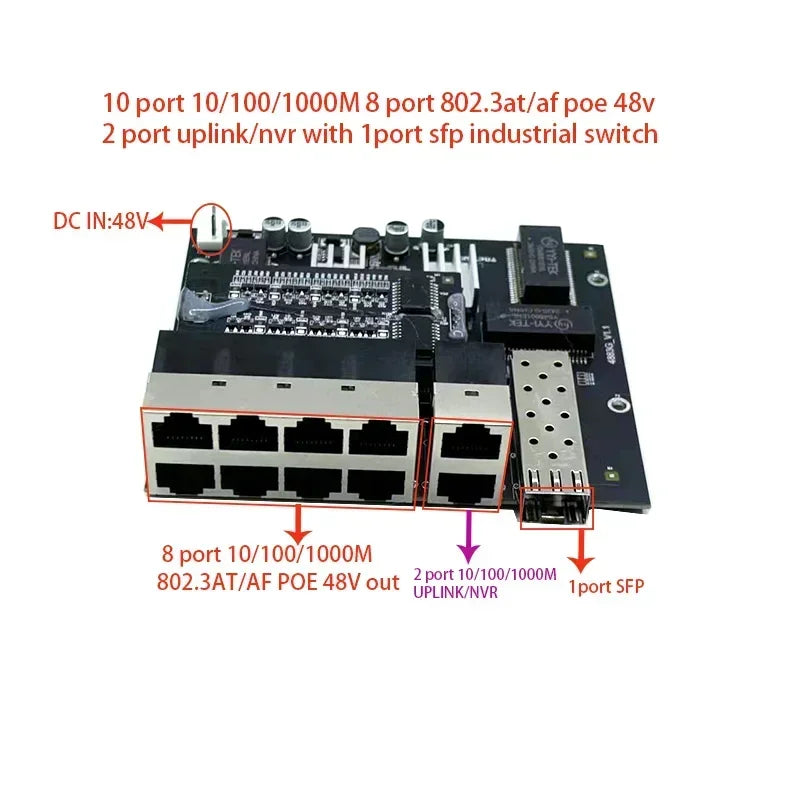

- You get two 1000Mbps uplinks plus a dedicated SFP port for flexible, high-speed backbone connections, with auto-negotiation on every port and MDI/MDIX auto flip.
- You enjoy VLAN support and IEEE 802.3x flow control for reliable, segmented networks and smooth data flow, plus a 2K MAC address table for efficient addressing.
- You deploy in harsh environments thanks to an industrial-grade enclosure that operates from -10 to 55°C, a compact footprint (115 × 100 × 27 mm), 0.3 kg, and PoE reach up to 150 meters.
|
Product |
8 poort POE Switch (Ingebouwde) |
|
Model |
ANDDEAR-POE48V |
|
POE Poort |
1 tot 4 ondersteuning IEEE802.3at/af Standaard |
|
Uitgangsvermogen |
15.4 w/30 w IEEE802.3af/at |
|
Power Pin |
Zowel 12+ 36- |
|
Hele Vermogen |
140 W 48V |
|
POE Protocol |
IEEE 802.3af/IEEE 802.3at |
|
POE Type |
End-span |
|
Power Afstand |
150m |
|
Netwerk Standaard |
IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at |
|
Netwerk Medium |
10/100/1000BASE-TX: 5 Klasse en boven non afgeschermde twisted pair |
|
Data Afstand |
150m |
|
Schakelaar Vermogen |
16Gbps |
|
Forwarding Modus |
Winkel en vooruit |
|
Doorstuursnelheid |
1000 Mbps: 14880pps 1000BASE-T: 1488095pps/poort |
|
MAC Adres |
MAC adres tafel 2 k |
|
Poort Functie |
Power prioriteit mechanisme, snelle en vooruit, MAC automatische leren en veroudering IEEE802.3X Full-duplex nl modus en tegendruk for a Half-duplex modus |
|
LED Indicator |
LINK/ACT.100Mbps; POE Status Indicator; Power indicator; Extender |
|
Werkomgeving |
Werktemperatuur:-10 °-55 °C |
|
Gewicht |
0.3 kg |
|
Size |

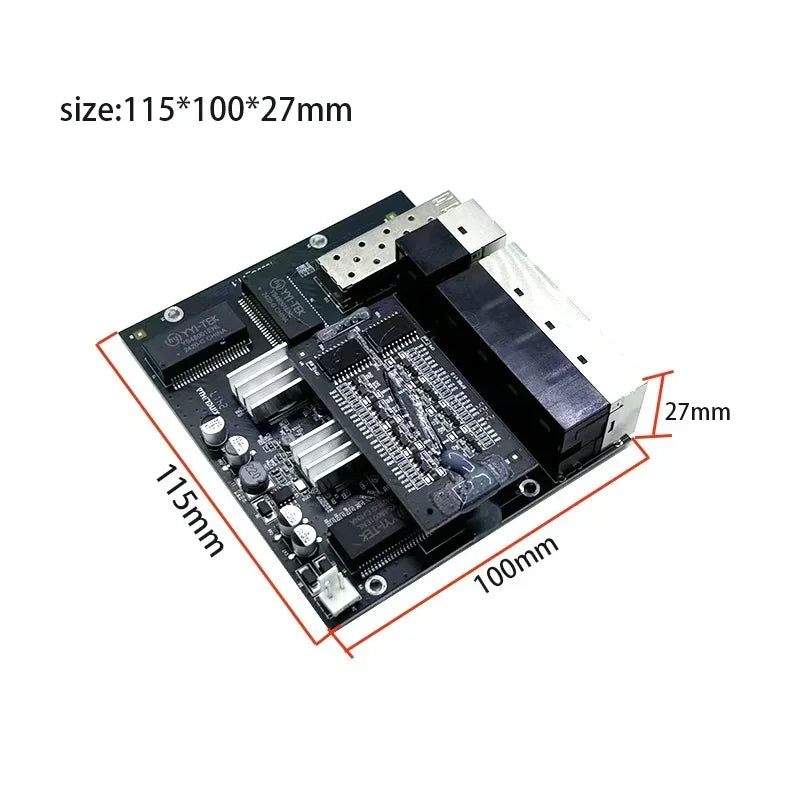

115mm * 100mm *27mm (L * W * H) |
